HS71918-E-T-P4S-UL Spindle Bearing
Spindle bearings HS71918-E-T-P4S-UL, adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances.
Send Inquiry
Product Details ofHS71918-E-T-P4S-UL Spindle Bearing
HS71918-E-T-P4S-UL Angular contact ball bearing.
Spindle bearings HS71918-E-T-P4S-UL, adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances.
|
|

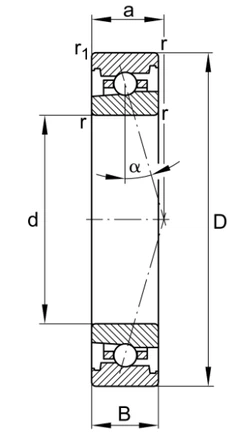

Bearing name | HS71918-E-T-P4S-UL |
| Bore diameter(d) | 90 mm | |
| Outside diameter(D) | 125 mm | |
| Total bearing width over inner rings(B) | 18 mm | |
| Basic dynamic load raring | 21.9 kN | |
| Basic static load rating | 17.7 kN | |
| Fatigue load limit | 1.81 kN | |
| Limiting speed | 13000 1/min | |
| Reference speed | 20000 1/min | |
| Mass bearing | 0.62 kg |
Application:
The motorized spindle is mainly used in high-end precision machining.
For example,
"3C wearing parts machining, workpiece finishing, aerospace propeller cutting, engine cylinder machining, car chassis machining, transmission joint grinding, etc. The commonality of these applications is the need for rapid and flexible capabilities during processing."
Features:
Due to their very narrow tolerances, the Machine tool spindle bearing are particularly suitable for applications with the highest guidance accuracy requirement, such as bearing arrangements for main spindles in machine tools.
Tolerance classes for ball bearings were defined by a committee within the ABMA known as the "Annular Bearings Engineers Committee" (ABEC). These tolerances are commonly referred to as ABEC rating or grade.
The higher the classification number, the tighter the tolerances become, resulting in higher precision of the Machine tool spindle bearing.
Main models and sizes:
Shipping method:
Express, air, sea, railway. From China to every corner of the world.
Our warehouse and packing:
A large number of off-the-shelf supplies, the shortest 2 working days for delivery.
Standard export packaging perfectly guarantees the safety of cargo transportation.
If you have any questions or queries about HS71918-E-T-P4S-UL spindle bearings, please do not hesitate to get in touch.
Our goal is to make sure that the machinery you are using is kept running smoothly with our high-quality bearings.
