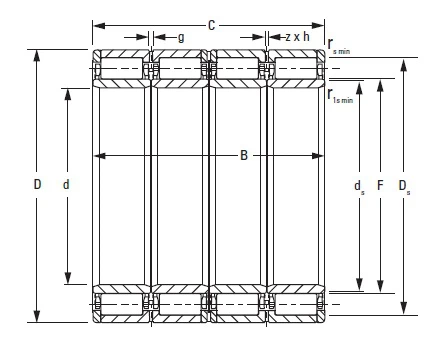

1040RX3882 Bearing

1040RX3882 bearing belongs to the "RX" four-row cylindrical roller bearing.
It has two single flanged outer races and rib rings for roller spacing.
The main dimension of the bearing is 1040*1439.89*1000 mm/4975.5 kg.
1040RX3882 large roller bearings are popular in large projects around the world.

Send Inquiry

Chat Now

Technical specifications of the 1040RX3882 bearing:

	Item NO.	1040RX3882
	Bearing type	RX-7 \| Four-row cylindrical roller bearing
	Inner diameter	1040 mm \| 40.9449 in
	Outside diameter	1439.89 mm \| 56.6886 in
	Width	1000 mm \| 39.3701 in
	Number of row	Four rows
	Number of lubrication holes	16
	Basic dynamic load rating	42 600 kN
	Basic static load rating	101 200 kN
	Mass approx.	4975.5 kg

Four-row cylindrical roller bearingsType RX

About the "RX" type

1040RX3882 belongs to the "RX-7" series four-row cylindrical roller bearing.

RX type products are mainly used for support roller parts. The steel pin-type cage accommodates more rollers, maximizing the bearing's radial load capacity.

Bearing applications:

1040RX3882 four-row cylindrical roller bearings are mainly suitable for rolling mill roll neck positions, including support rolls, intermediate rolls and work rolls of plate, long and profile rolling mills.

rolling mill roll neck positions
