3PJ 200/536 Poly-V Belt
536 PJ-3 - for Roller Conveyors (a = 200 mm) is an elastic polyurethane V-ribbed belt intended for Add to Inquiry

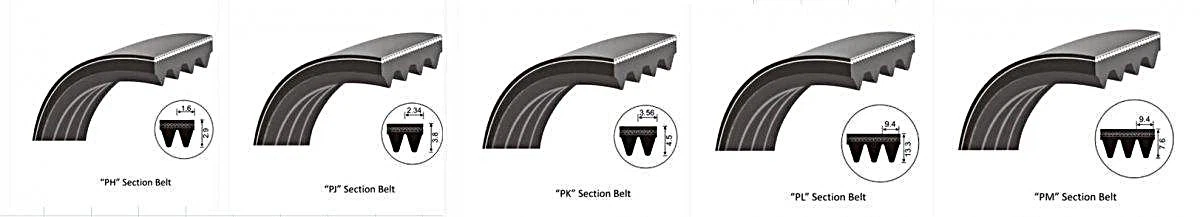

Specifications of the PJ type poly-V belt:
|
Wedge distance - pb |
2.34 mm |
|
Wedge angle - a |
40° |
|
Belt thickness - h |
4 mm |
|
Wedge number - rb |
3-36 |
|
Length - b |
300-1880 mm |
|
Resistance temperature |
-30℃ to 90℃ |
|
Oil resistance |
Oil resistant |
|
Recommended minimum pulley diameter |
20 mm |
|
Permanent elongation |
Small |
|
Recommended maximum speed |
60 m/s |
|
Efficiency |
96% |
|
Use heavy behavior |
Excellent |
|
With tremors |
very small |
|
Maximum transfer |
1:35 |
We're well-known as one of the leading pj type poly-v belt manufacturers and suppliers in China. If you're going to buy high quality pj type poly-v belt with competitive price, welcome to get more information from our factory.
